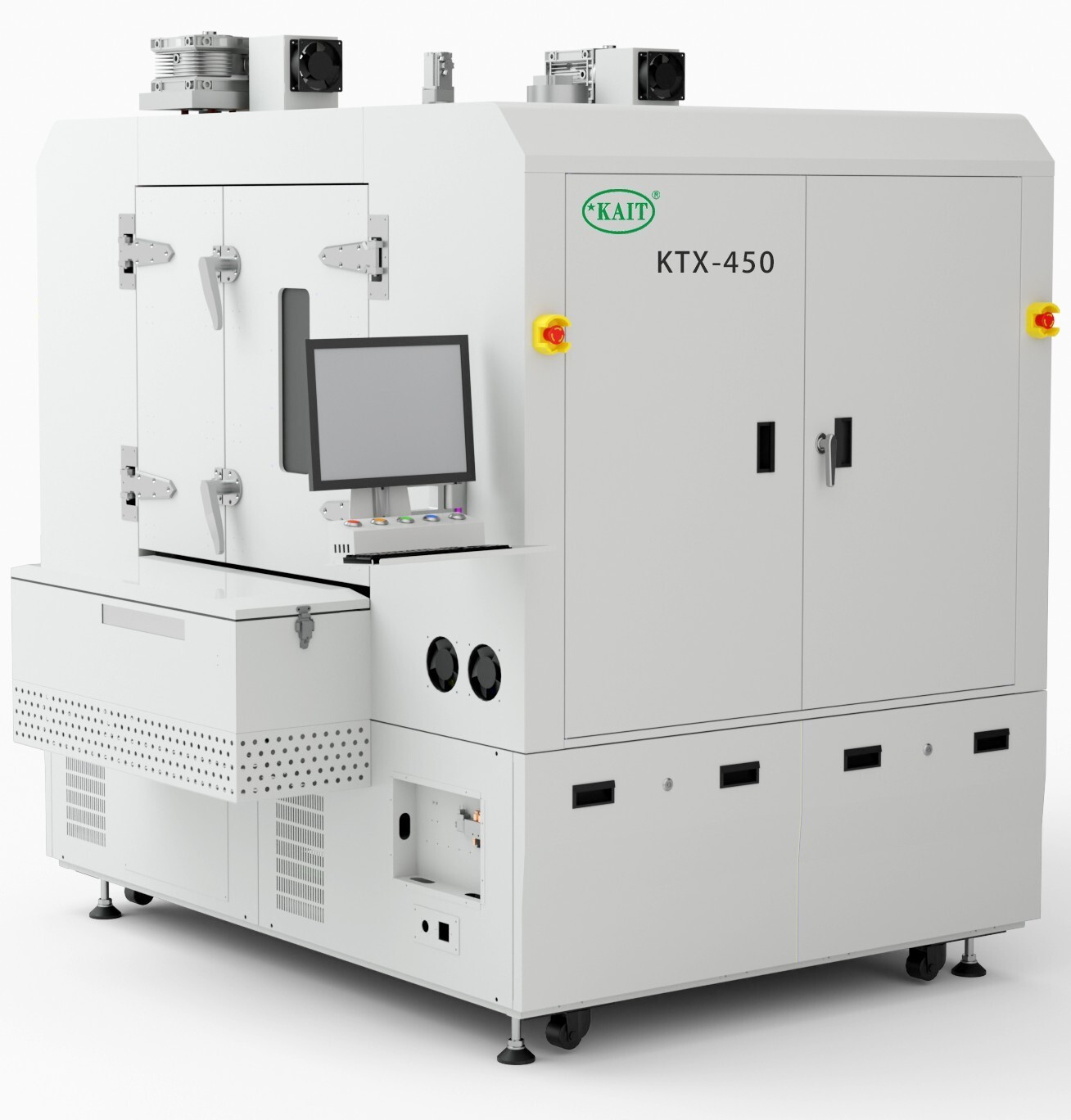

KTX-450 Vertical curing oven
Compared with other soldering ovens, vertical curing oven is smaller, with high efficiency and uniform temperature, is an indispensable equipment in the semiconductor industry. Large capacity, higher production efficiency and better benefits.

Address:Guang sheng rong Industrial park, No.94 ,Guangtian Road, Songgang Street, Bao’an District, Shenzhen China



Mobile:+86 15889432790



Specification:

Model

KTX-450

Dimension(mm)

L2100*W2120*H2150

Weight

Approx.1800kg

W*L Max. PCB size

400*450 mm

Product weight

Max. 3kg/layer

Component height

25.4mm

PCB process edge

5mm

Number of layers

60 layers

Conveyor height

900±30mm

Min. output

12s/PCB & pallet

Entrance & exit   conveyor

In-line

Lifting system

Servo motor

Rail width   adjustment

Manual or Automatic

Setting   temperature

Max. 250℃

Heating system

4*2=8 heating   modules

Heating power

8*8KW

Temperature   control accuracy

±1℃

Inner temperature   difference

Less than ±2℃

N2 configuration

Optional

Cleanroom class

Optional
